SQ2 Black and White-Rectangular gimbal IP20 2 light surface mount trim for X Series COB Modules
SQ2 Black and White-Rectangular gimbal IP20 2 light surface mount trim for X Series COB Modules
23 in stock
SKU:SQ2 Black and White
Couldn't load pickup availability
IP20, Adjustable Surface mount ring for X3A, X15A, X20A, XRGBW and XCCT COB down light modules.
Choose this trim if
a. when you want a gimbal rectangular trim.
b. reasonable low profile bezel makes it architecturally very attractive.
c. Low glare rating as the light is set back.
d. when you wish to put two lights together in one trim for more light output or architectural needs.
Do not choose this trim if
a. you are planning to use it in high moisture areas like external eves and shower rooms as its IP20 rated.
Cut out |
90 x 170 mm |
Diameter of face |
100 x 185 mm |
Total height of fitting |
45 mm |
Mounting depth with X3A |
95 mm |
Mounting depth with X15A |
104 mm |
Mounting depth with X20A |
121 mm |
Mounting depth with XRGBW |
95 mm |
Mounting depth with XCCT |
80 mm |
Please note that the light module can be removed without pulling the trim out. This is a design feature of this trim.
Click here to download a pdf spec sheet for SQ2 rectangular adjustable IP20 2 light trim.

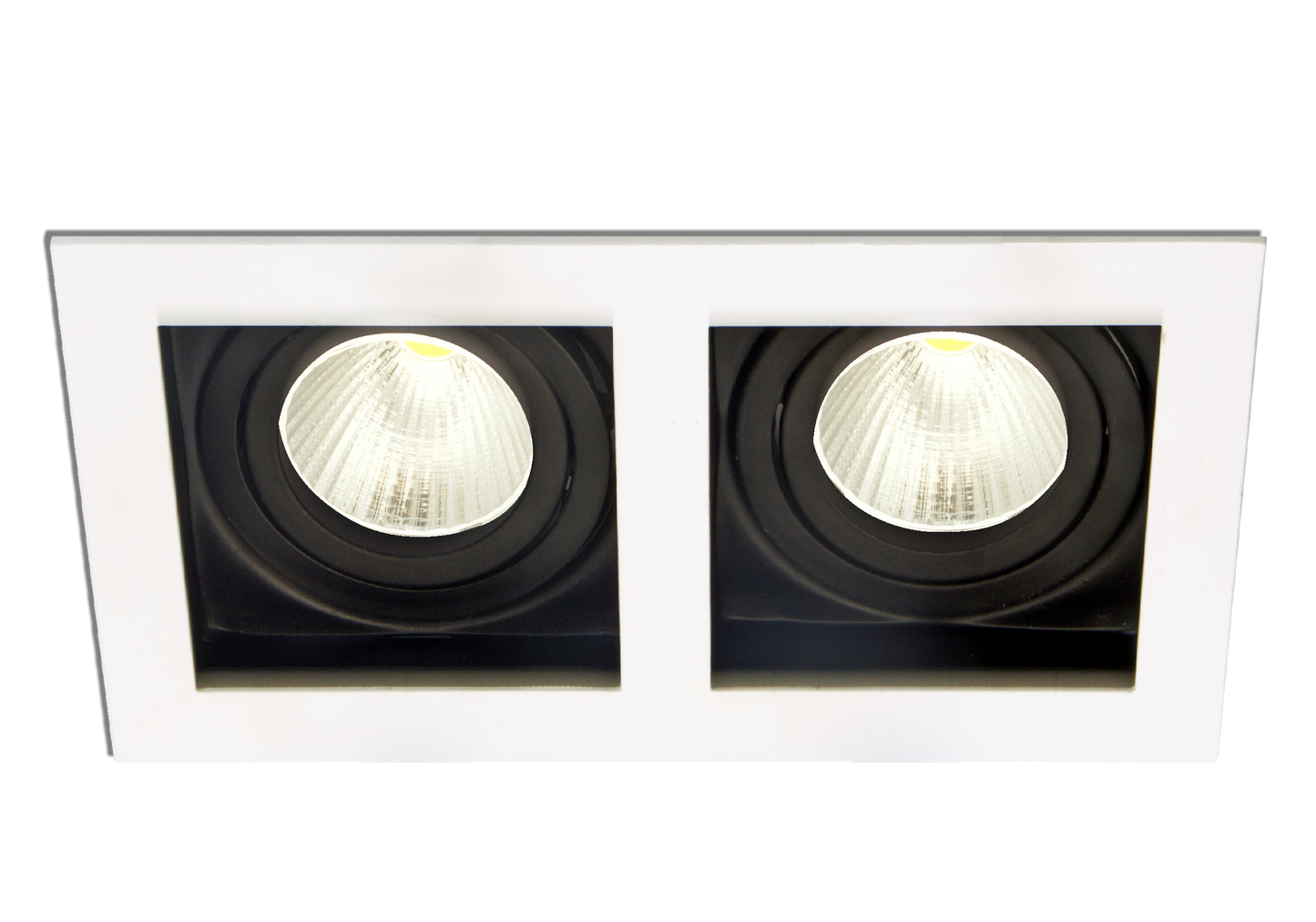

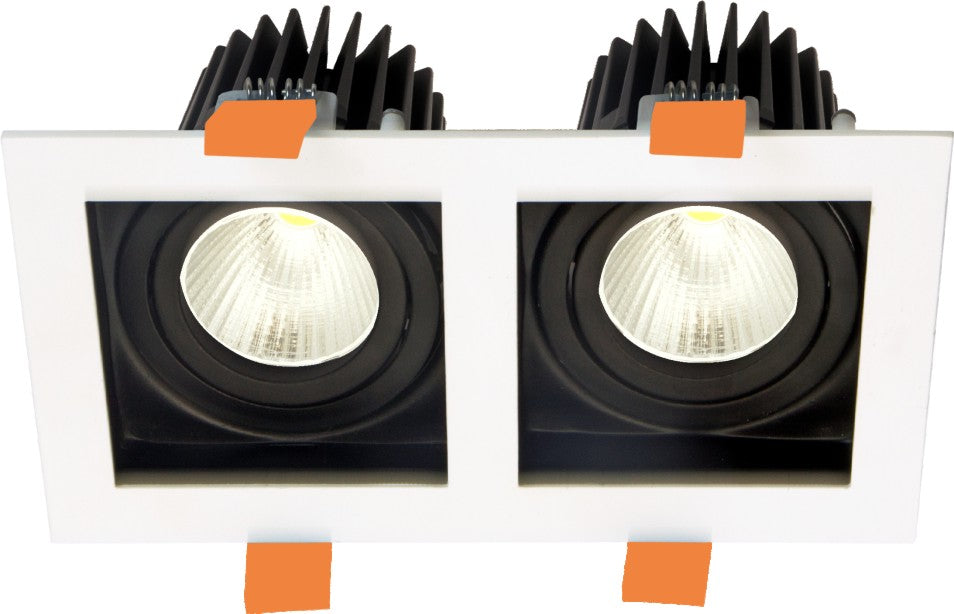

The price is for the surface mount trim only. The light is shown for illustration purposes only.
