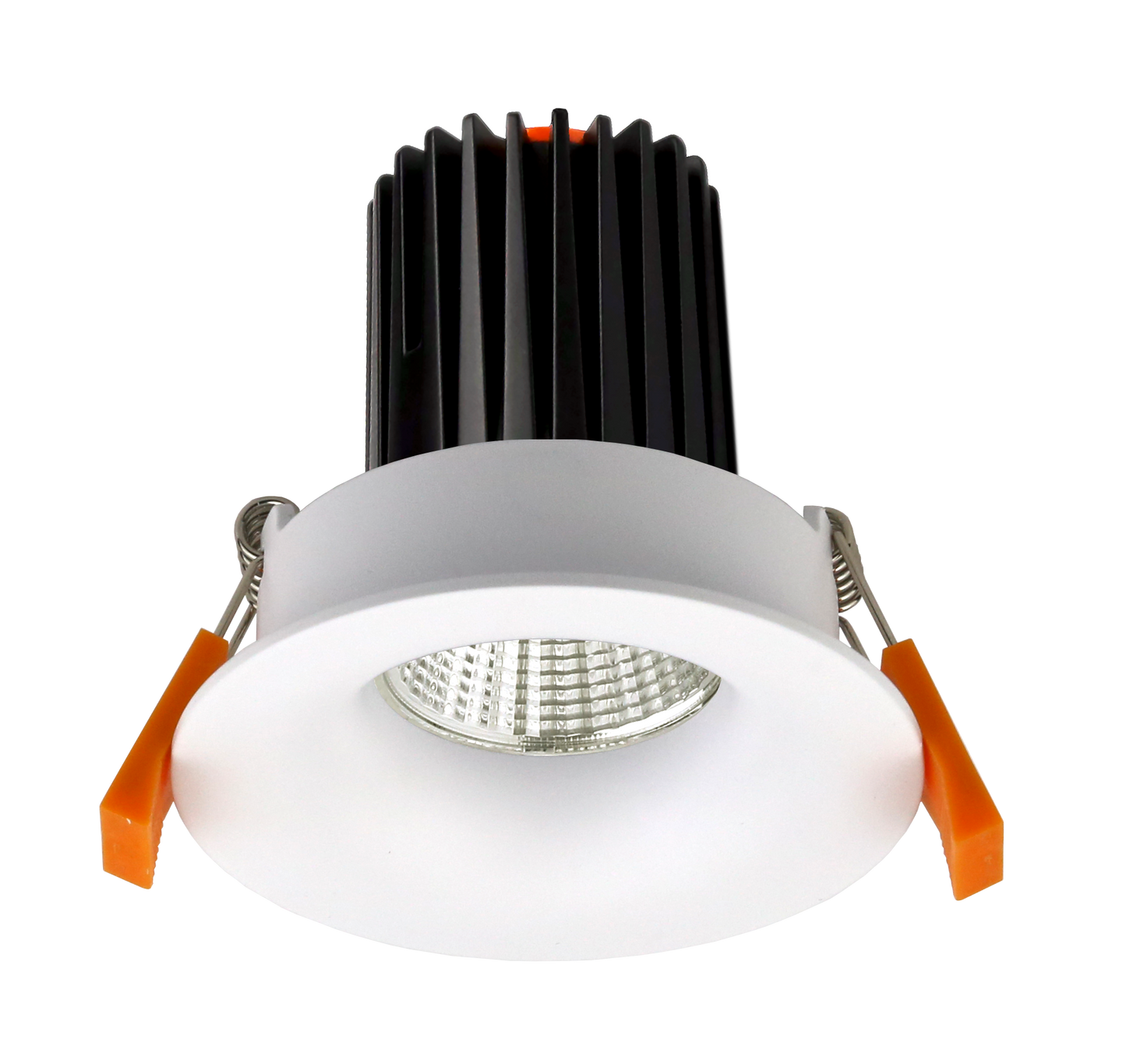

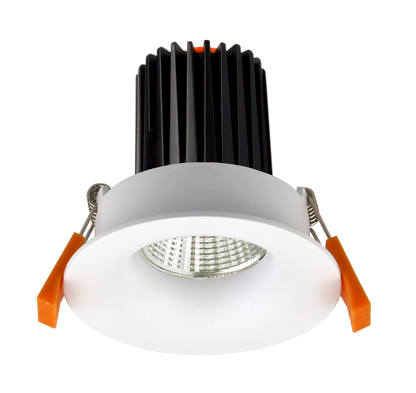

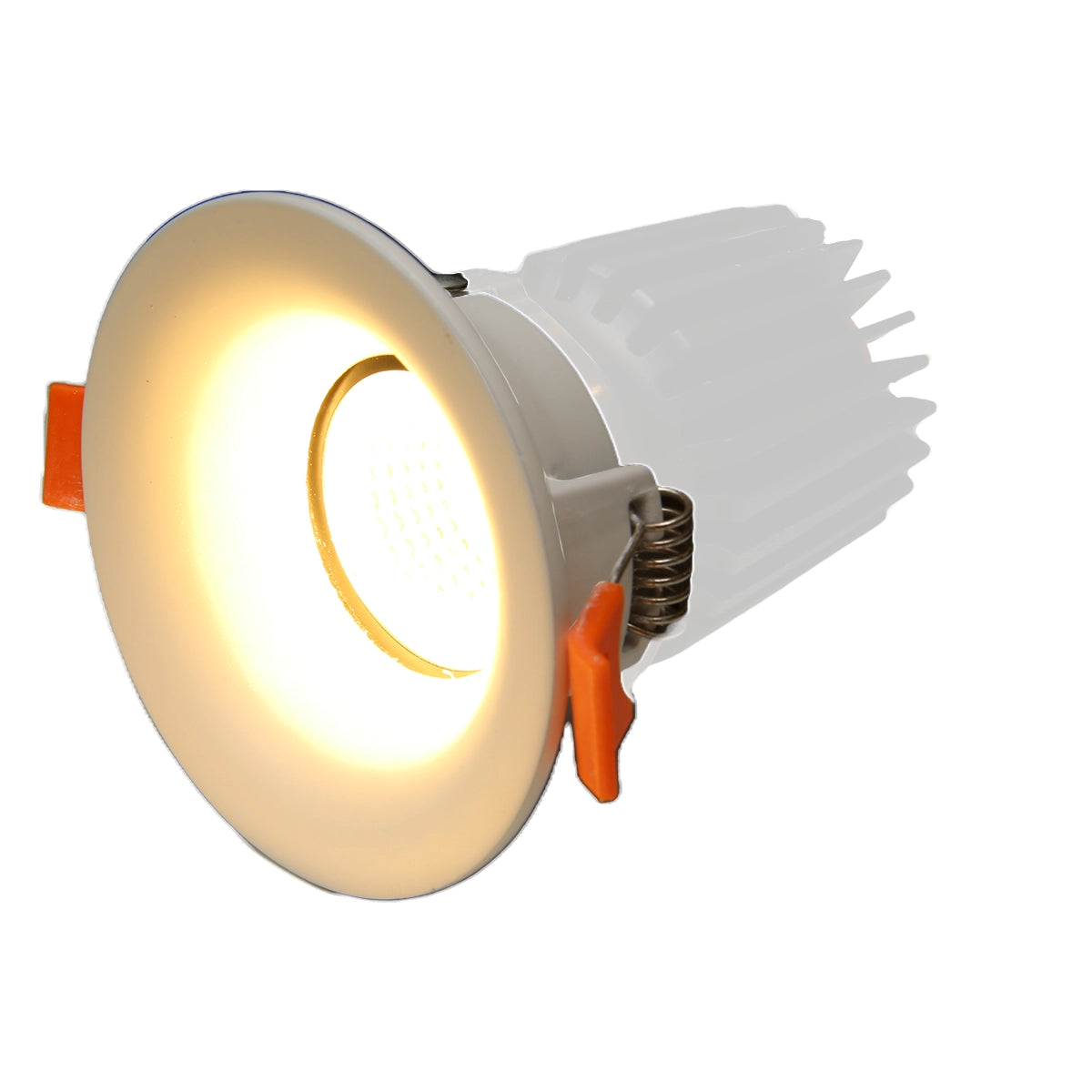

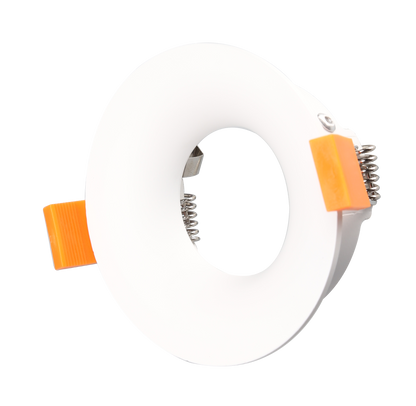

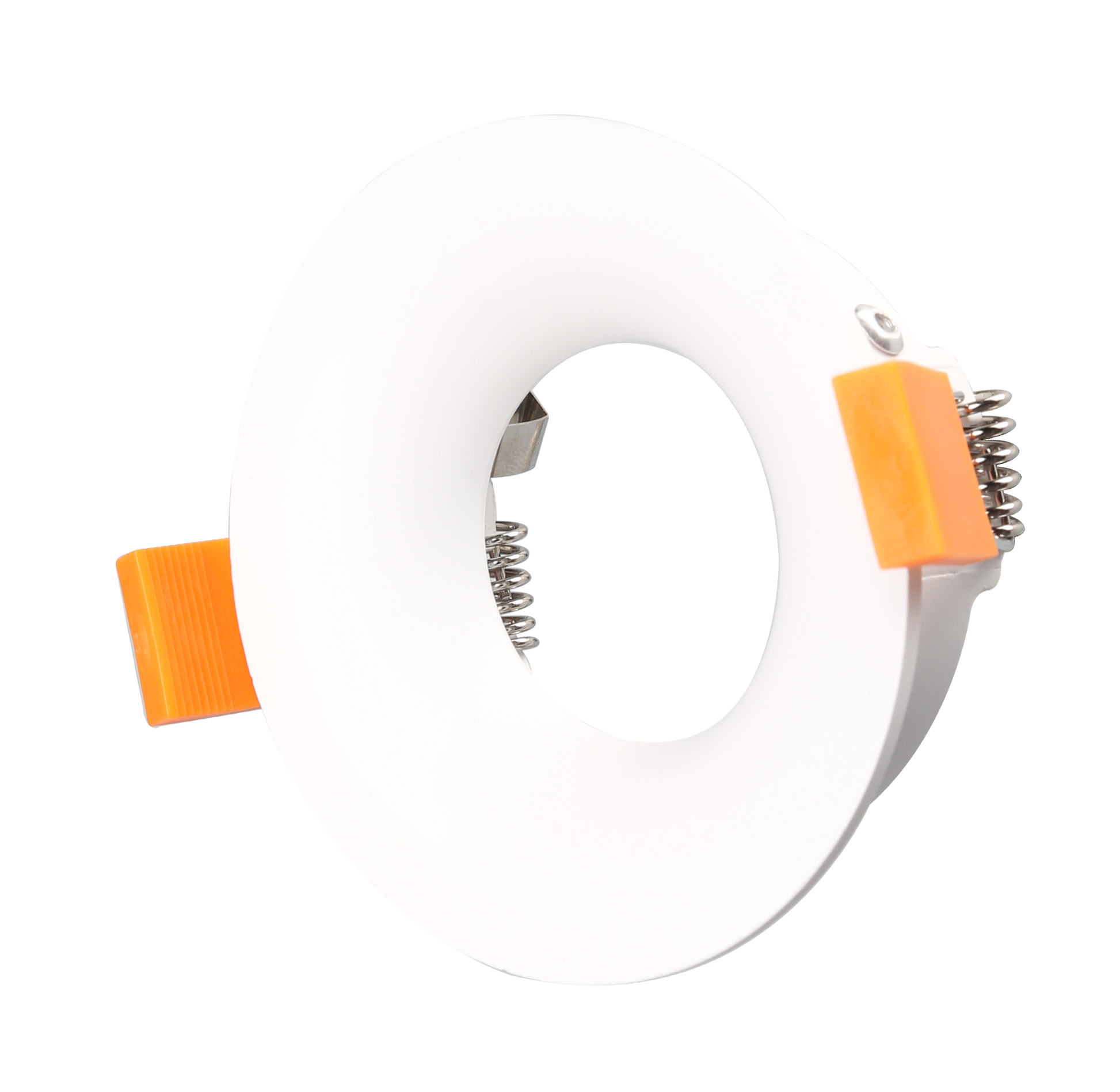

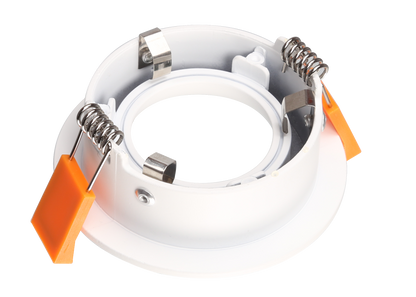

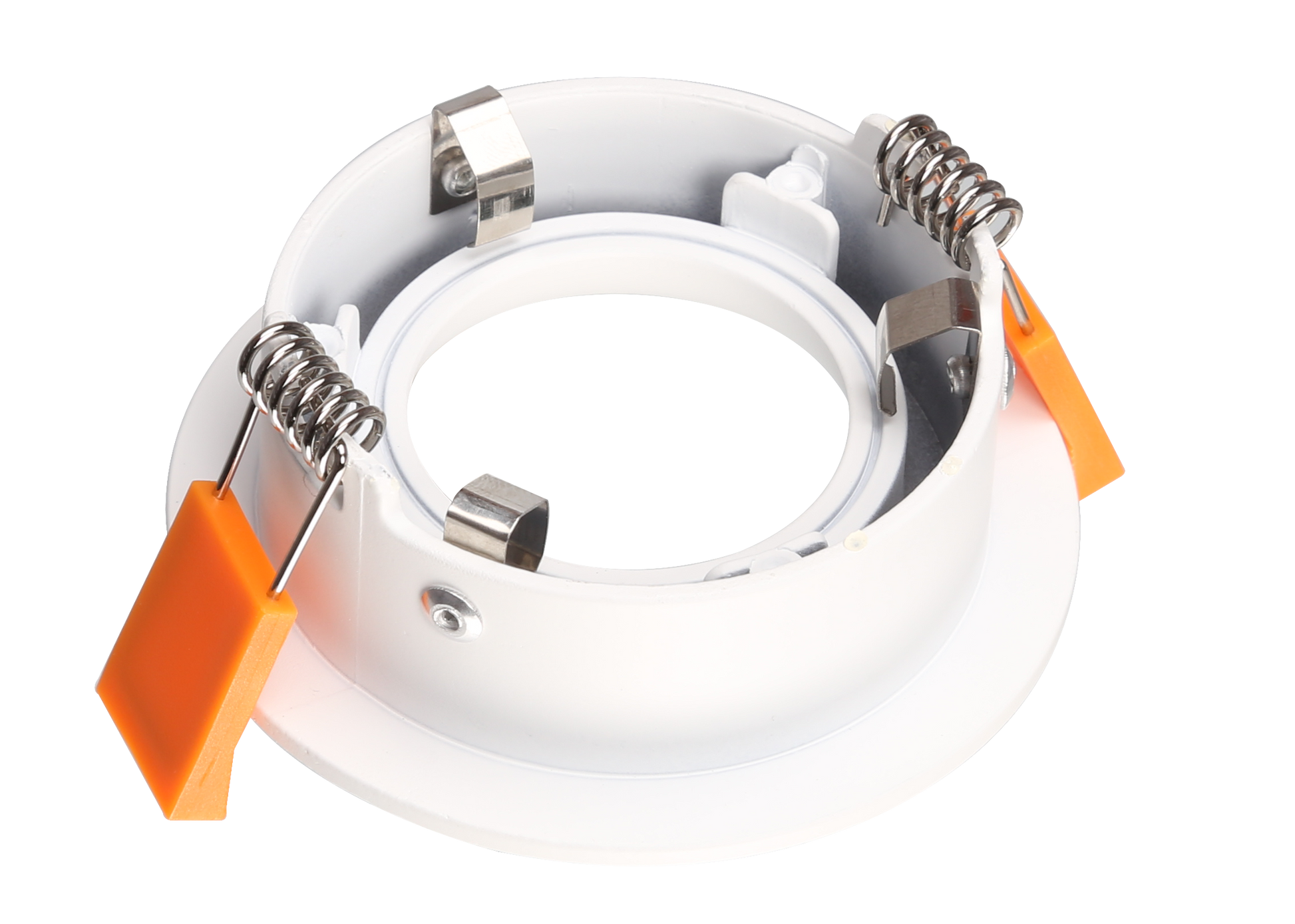

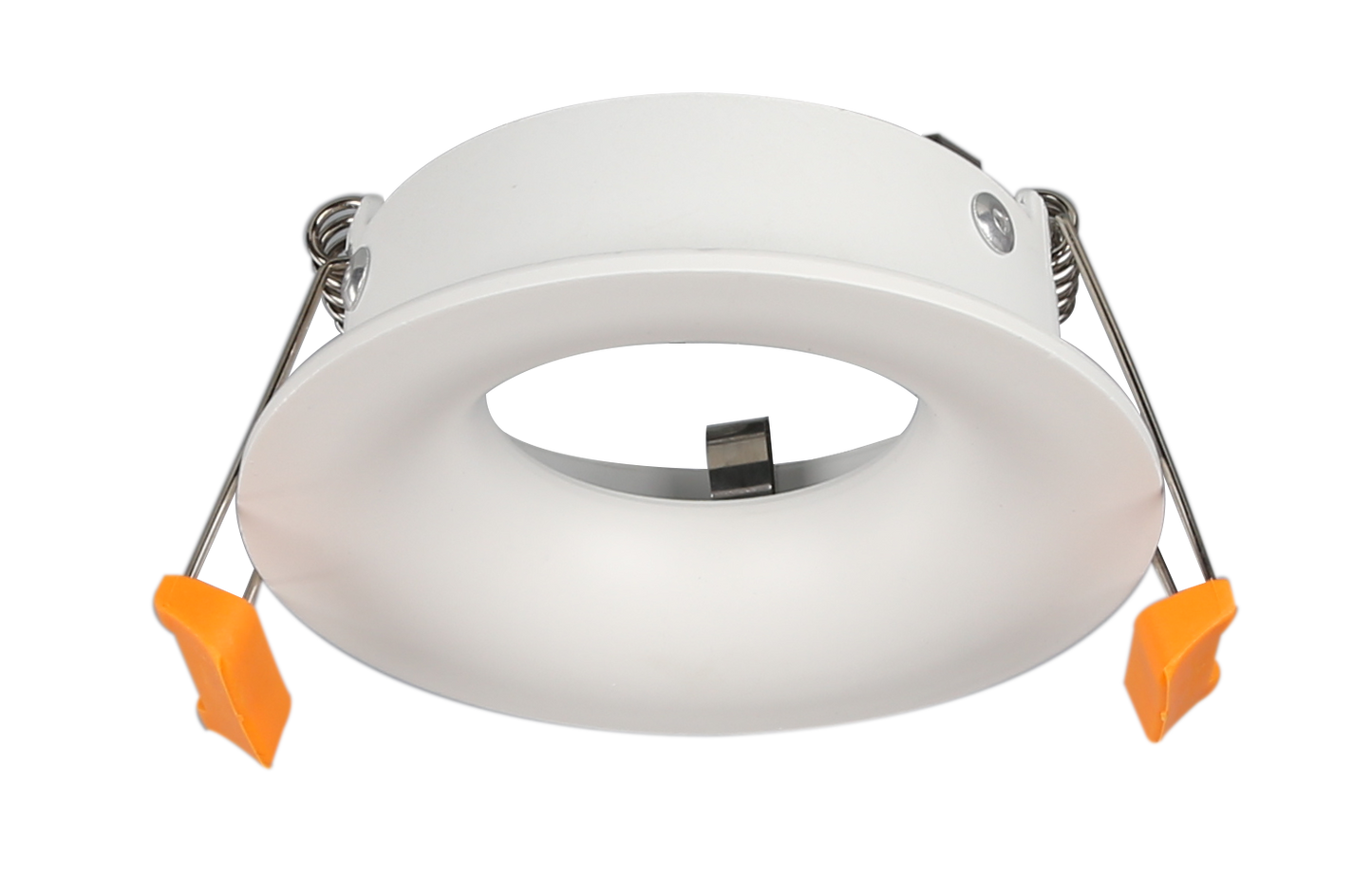

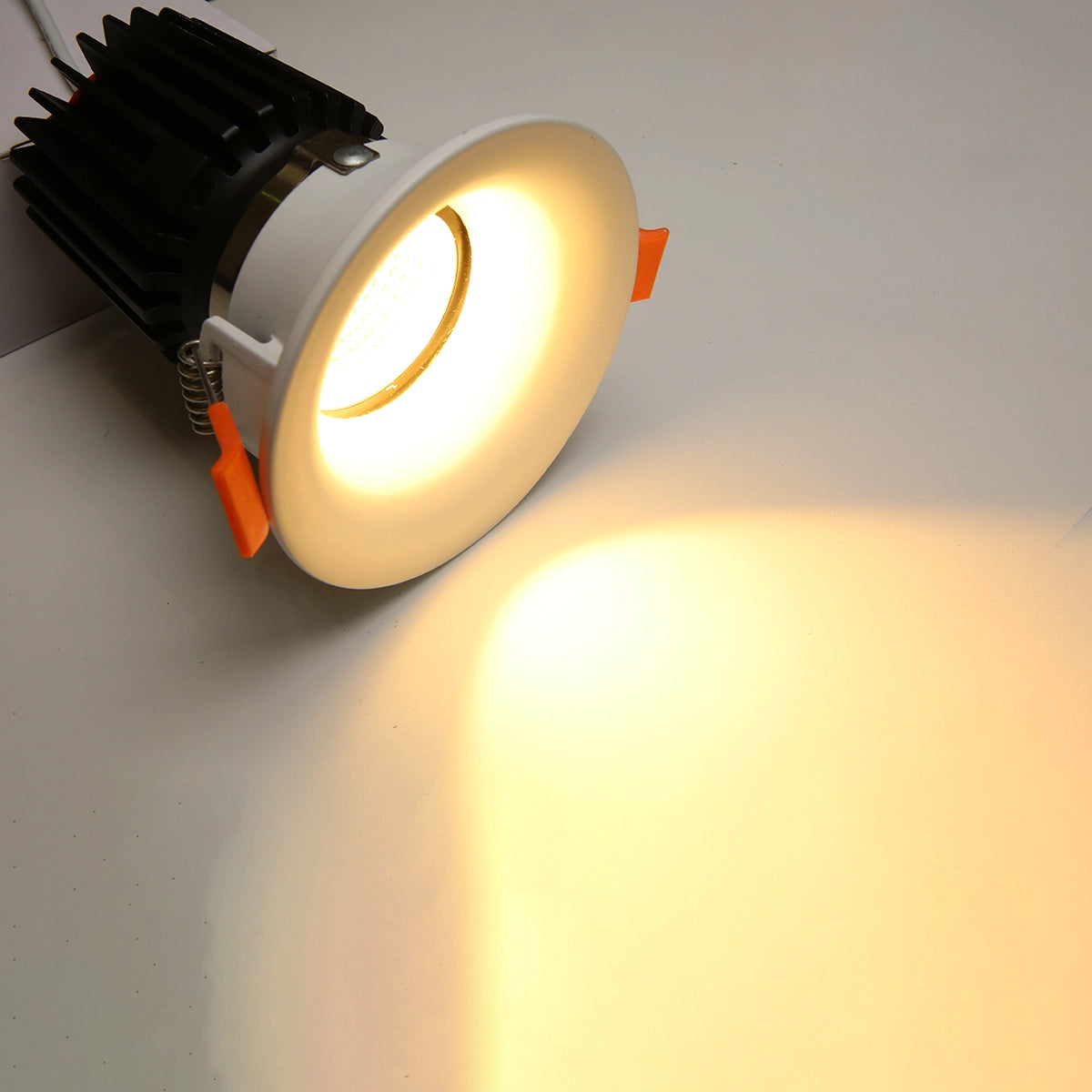

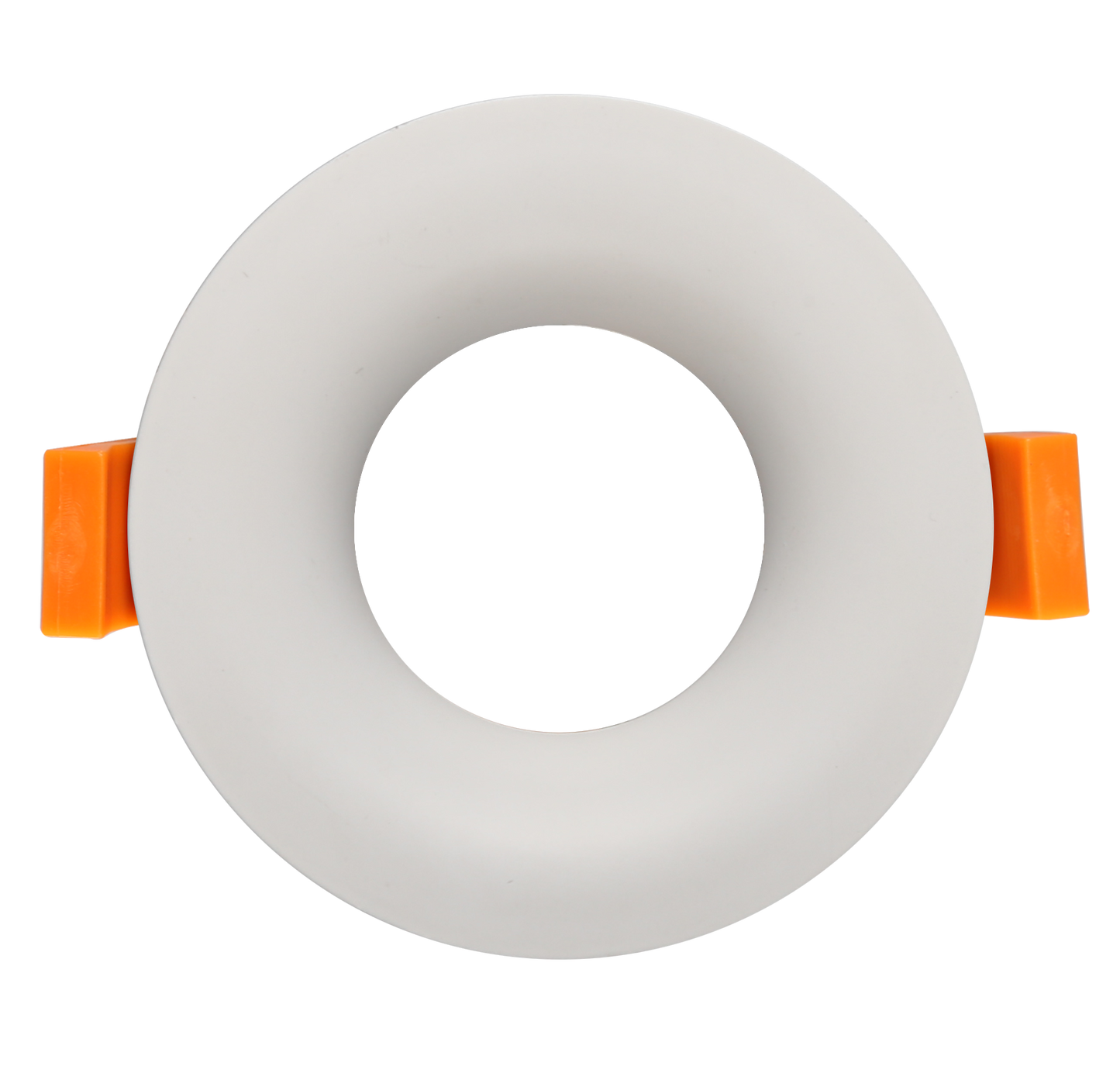

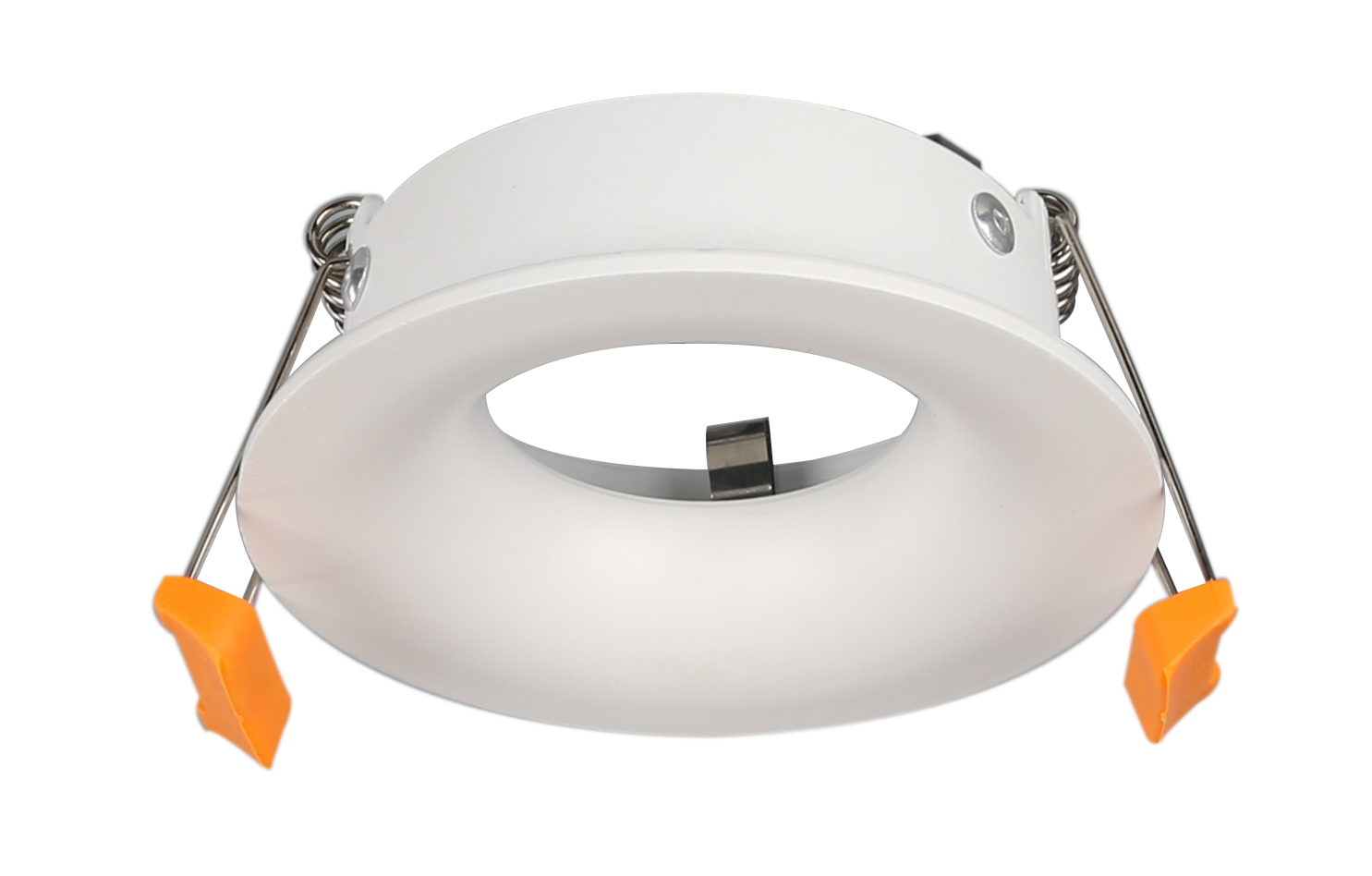

RF8 White- Round fixed IP20 surface mount trim for X Series COB Modules
RF8 White- Round fixed IP20 surface mount trim for X Series COB Modules
75 in stock
SKU:RF8 White

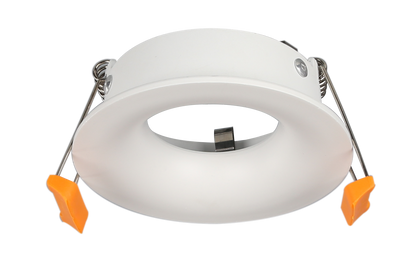

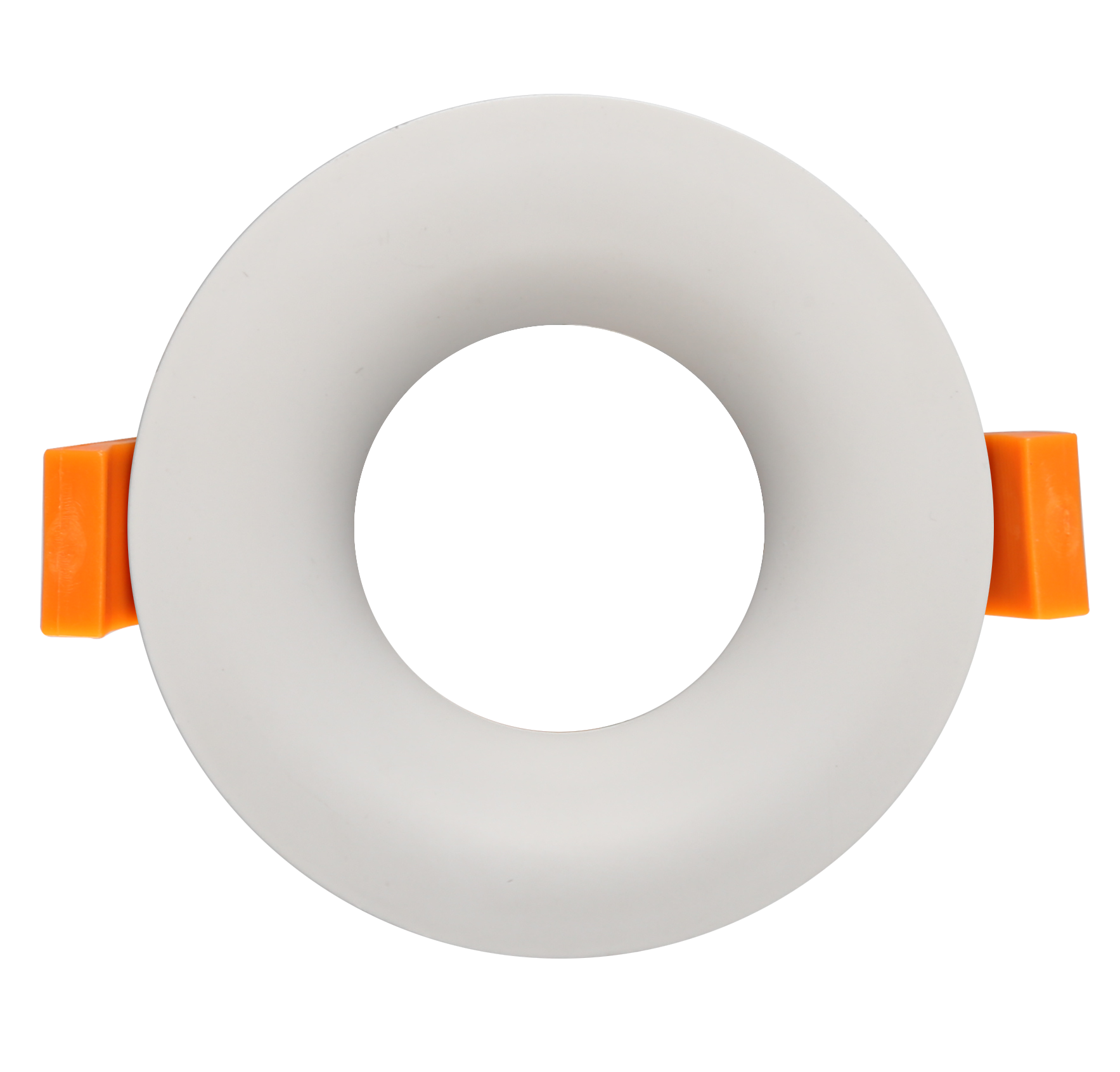

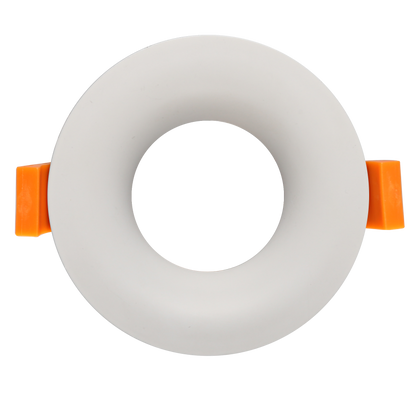

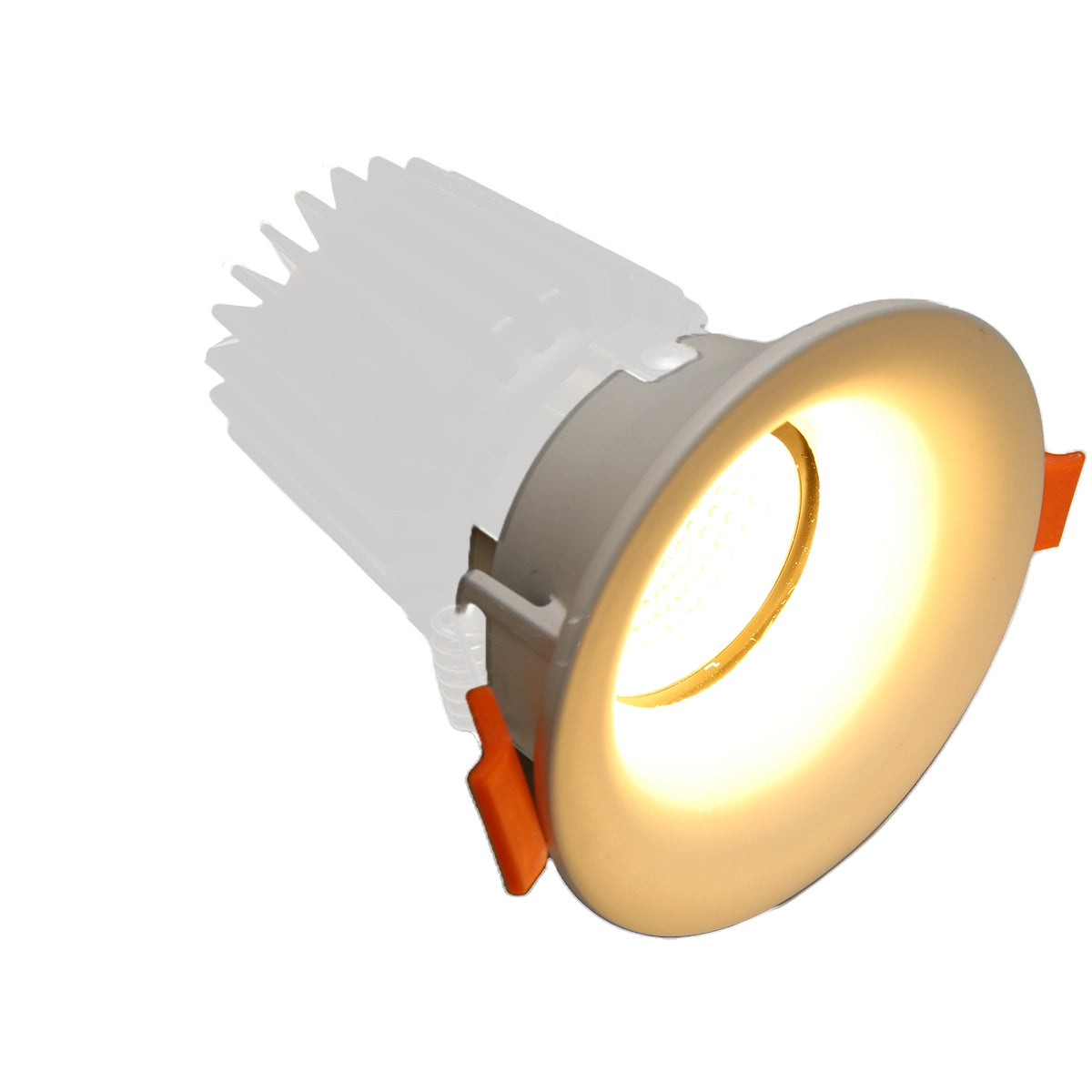

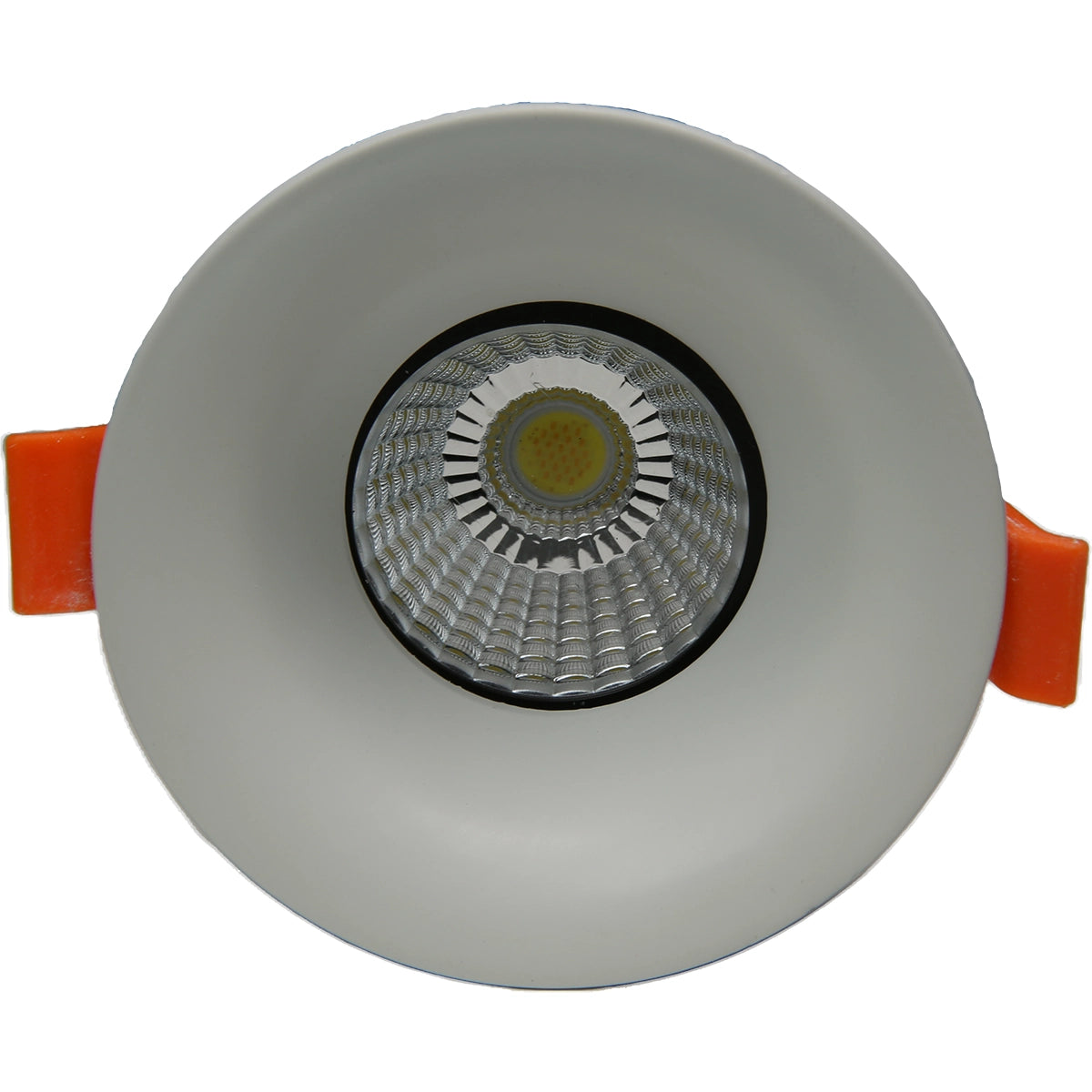

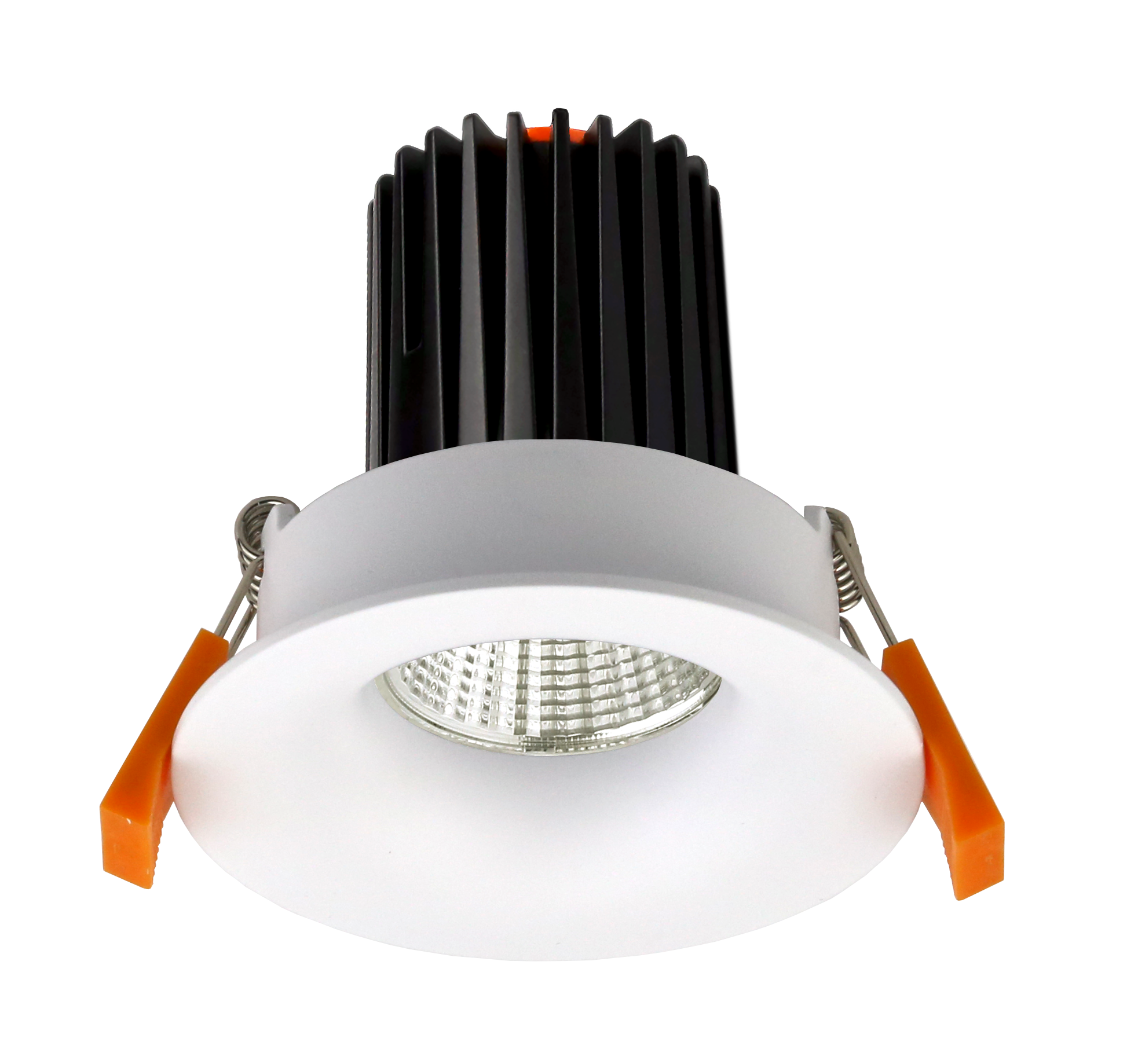

IP20, Surface mount ring for X3A, X15A, and X20A COB downlight module
Choose this trim if
a. the desired outcome is an architecturally attractive small bezel trim.
b. Low glare as the light module sits a fair distance in the ceiling.
c. Very neutral look that everyone will like.
d. When you have existing light fitting that have a cut out of 70-75 mm.
Do not choose this trim if
a. You are replacing existing lights and the cut out size is larger than 75 mm.
b. you are using this fitting in high moisture areas i.e. external eves or shower rooms. This fitting does not have glass to increase the protection of the light module. Using this fitting in high moisture areas will expose the light module to moisture which will result in light failure.

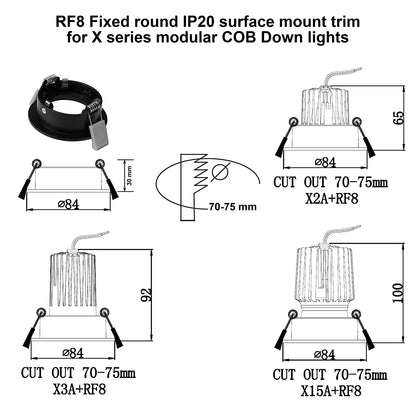

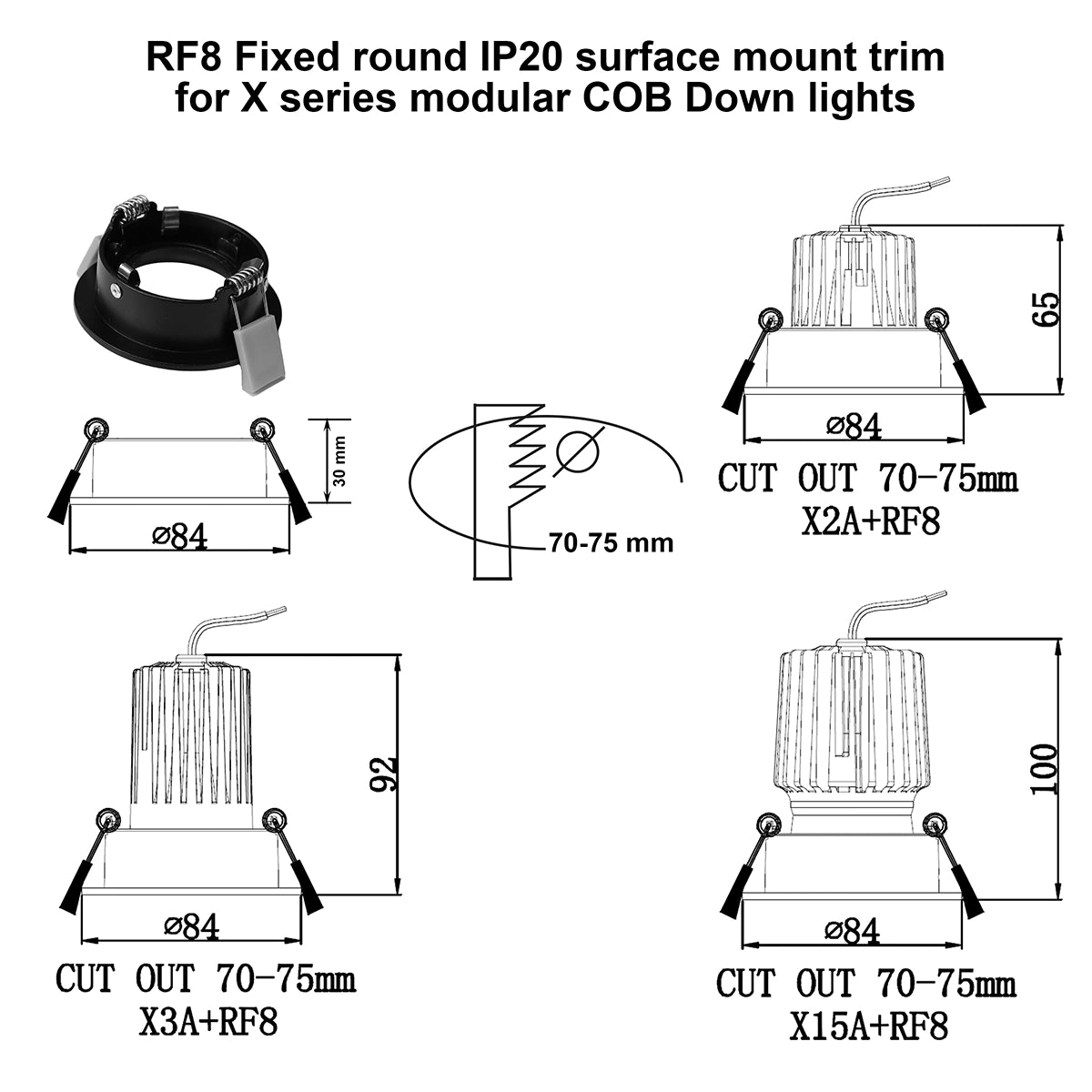

Cut out |
70-75 mm |
Diameter of face |
84 mm |
Total height of fitting |
30 mm |
Mounting depth with X3A |
92 mm |
Mounting depth with X15A |
100 mm |
Mounting depth with X20A |
Not suitable |
Mounting depth with XRGBW |
92 mm |
Mounting depth with XCCT |
75 mm |
Click here to download a pdf spec sheet for RF8 round fixed IP20 trim.
