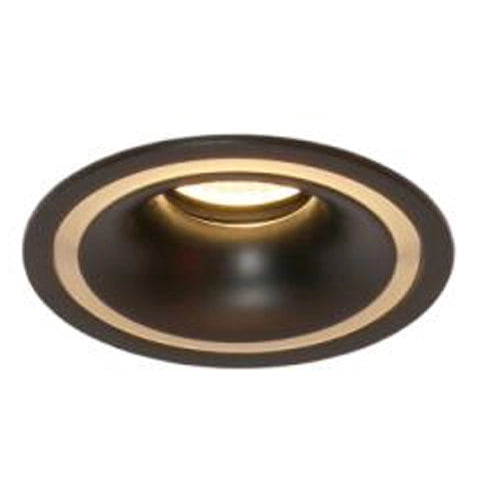

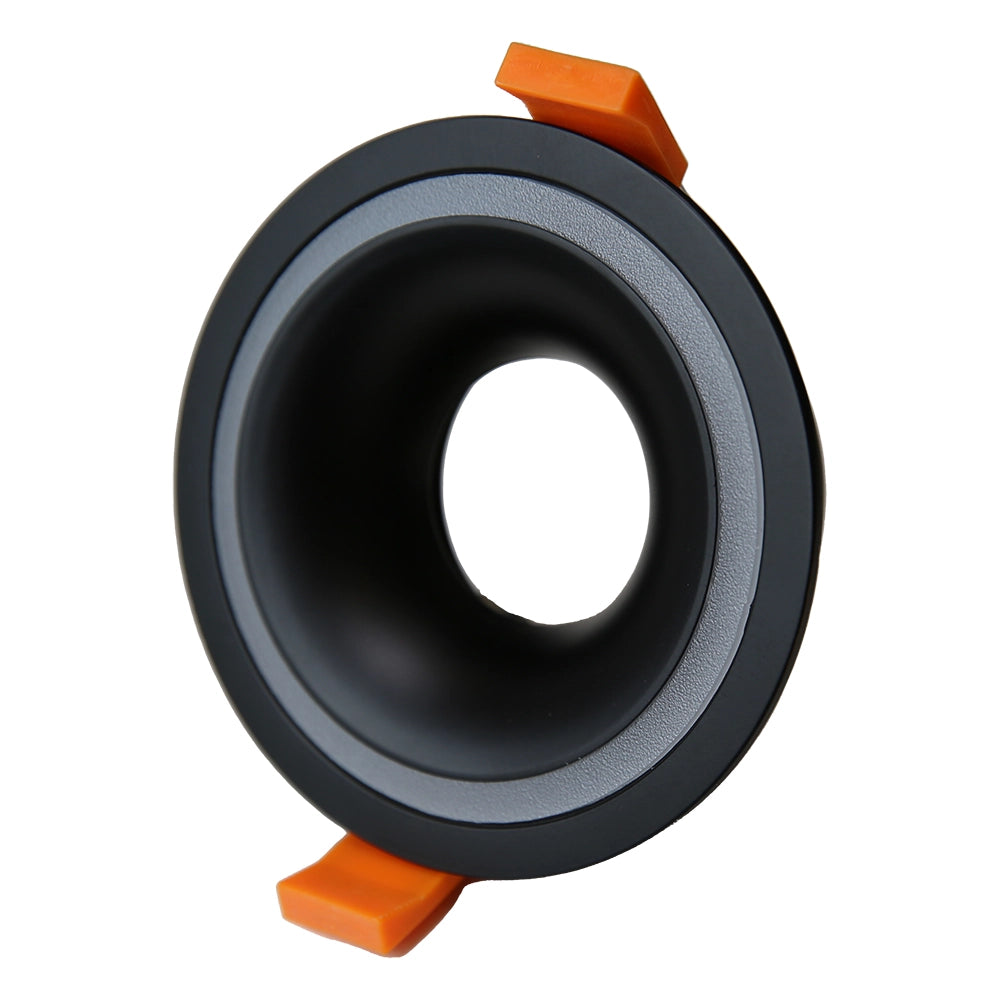

RF6 Black-Round fixed IP20 surface mount trim with halo ring for X Series COB Modules
RF6 Black-Round fixed IP20 surface mount trim with halo ring for X Series COB Modules
Low stock: 5 left
SKU:RF6 Black

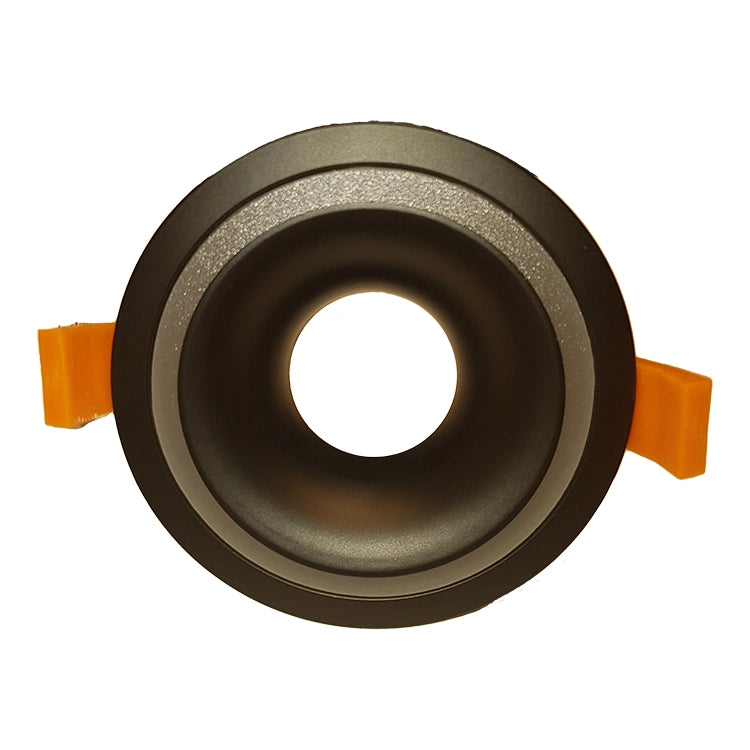

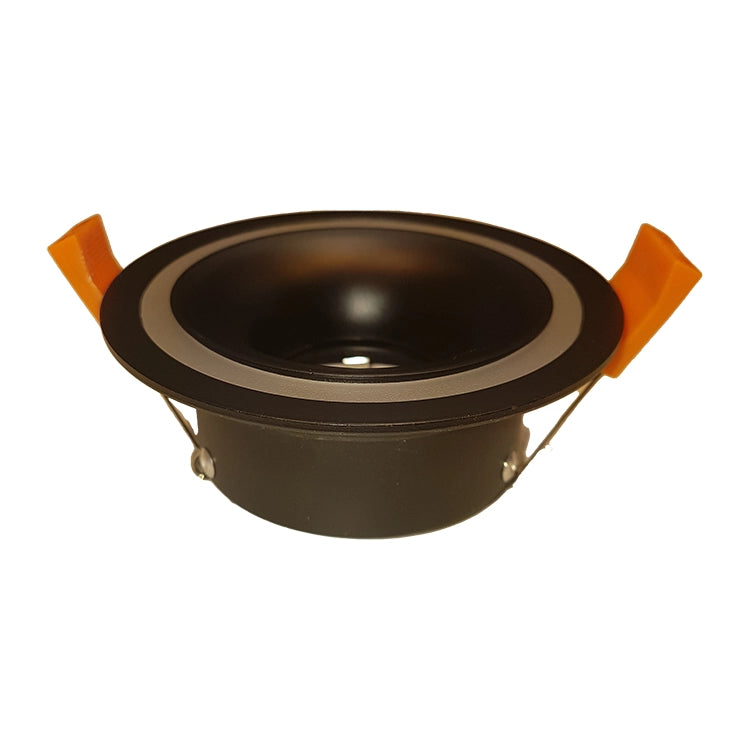

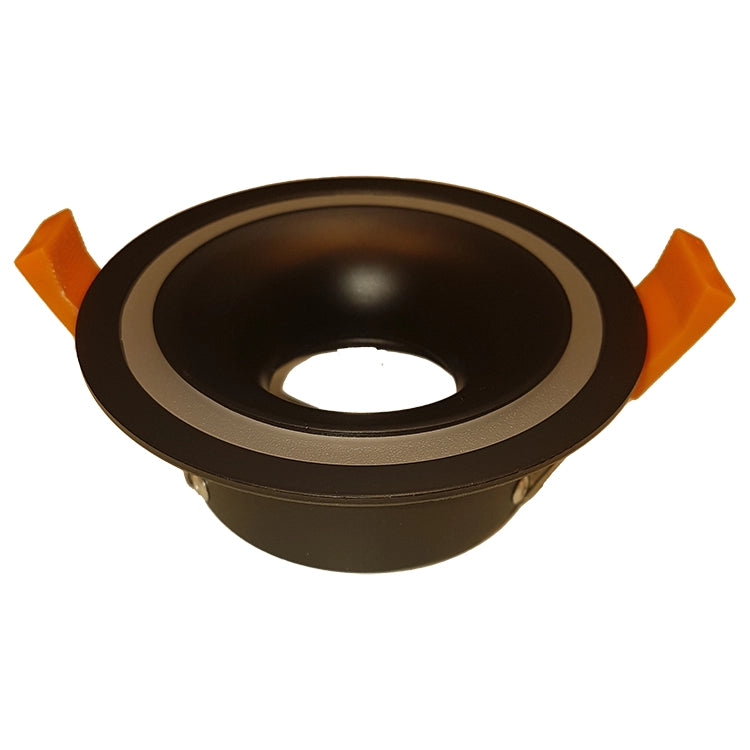

IP20, Surface mount ring for X3A, X15A, X20A, XRGBW and XCCT modular COB down lights.
IP20, Surface mount ring for X3A, X15A, X20A, XRGBW and XCCT modular COB down lights
Choose this trim if

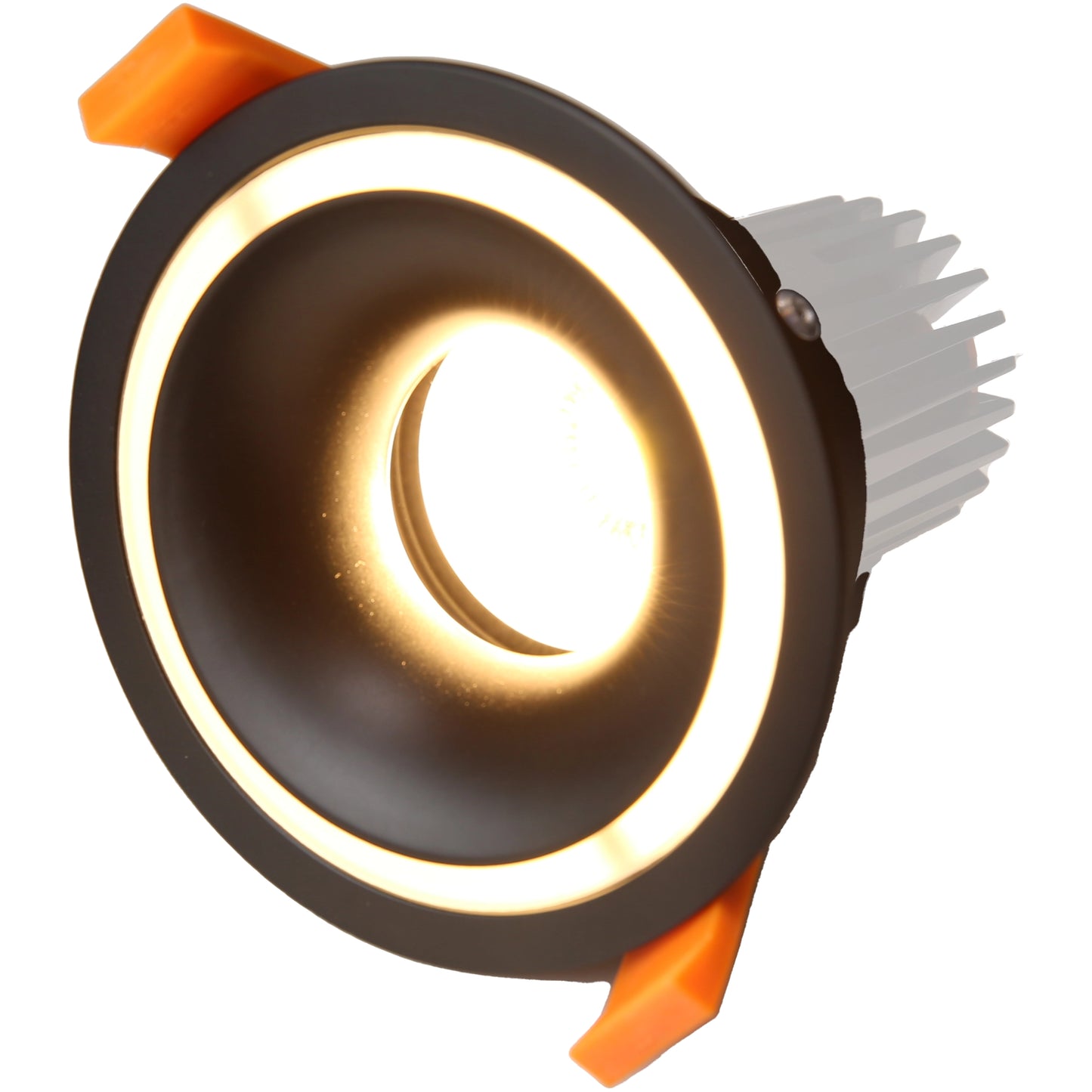

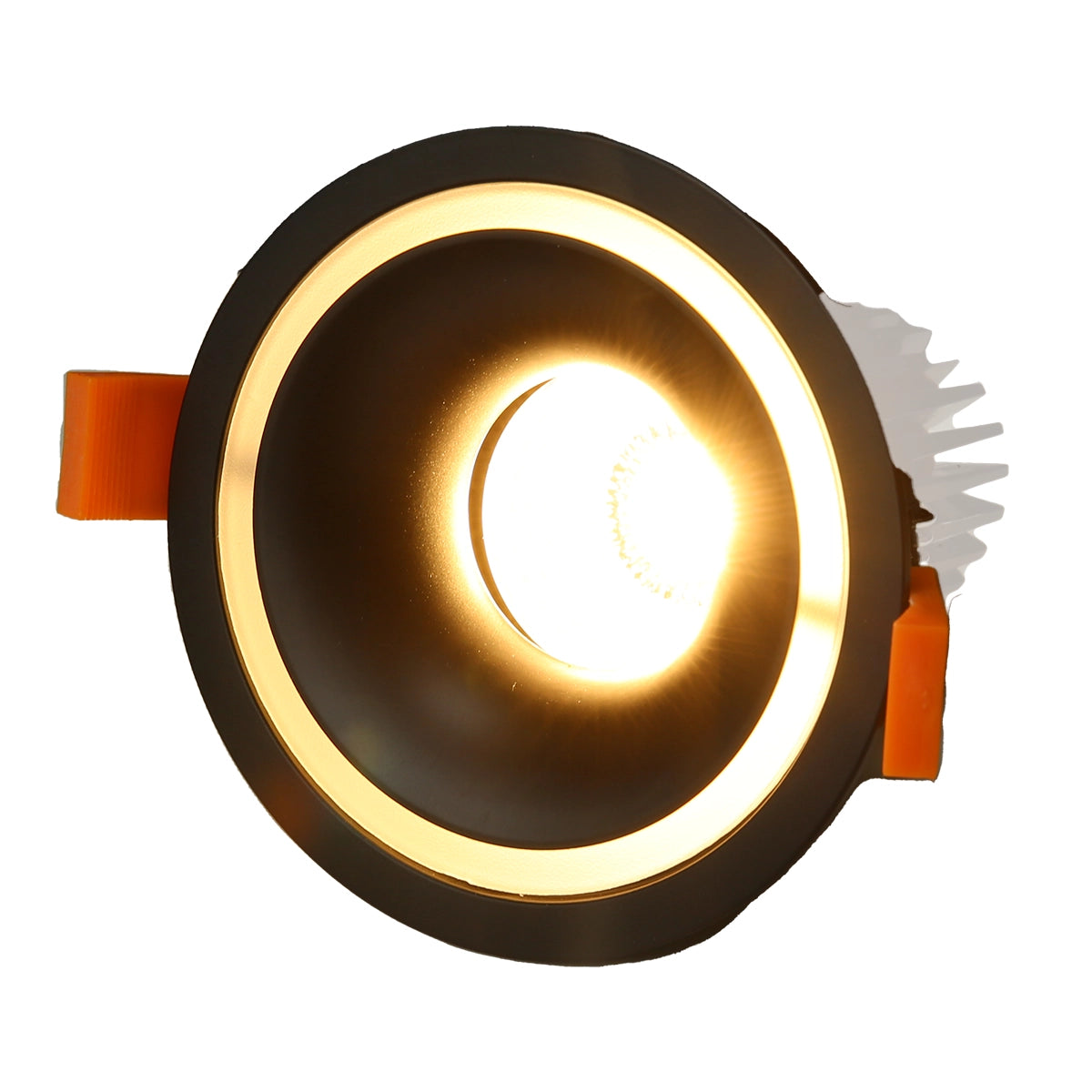

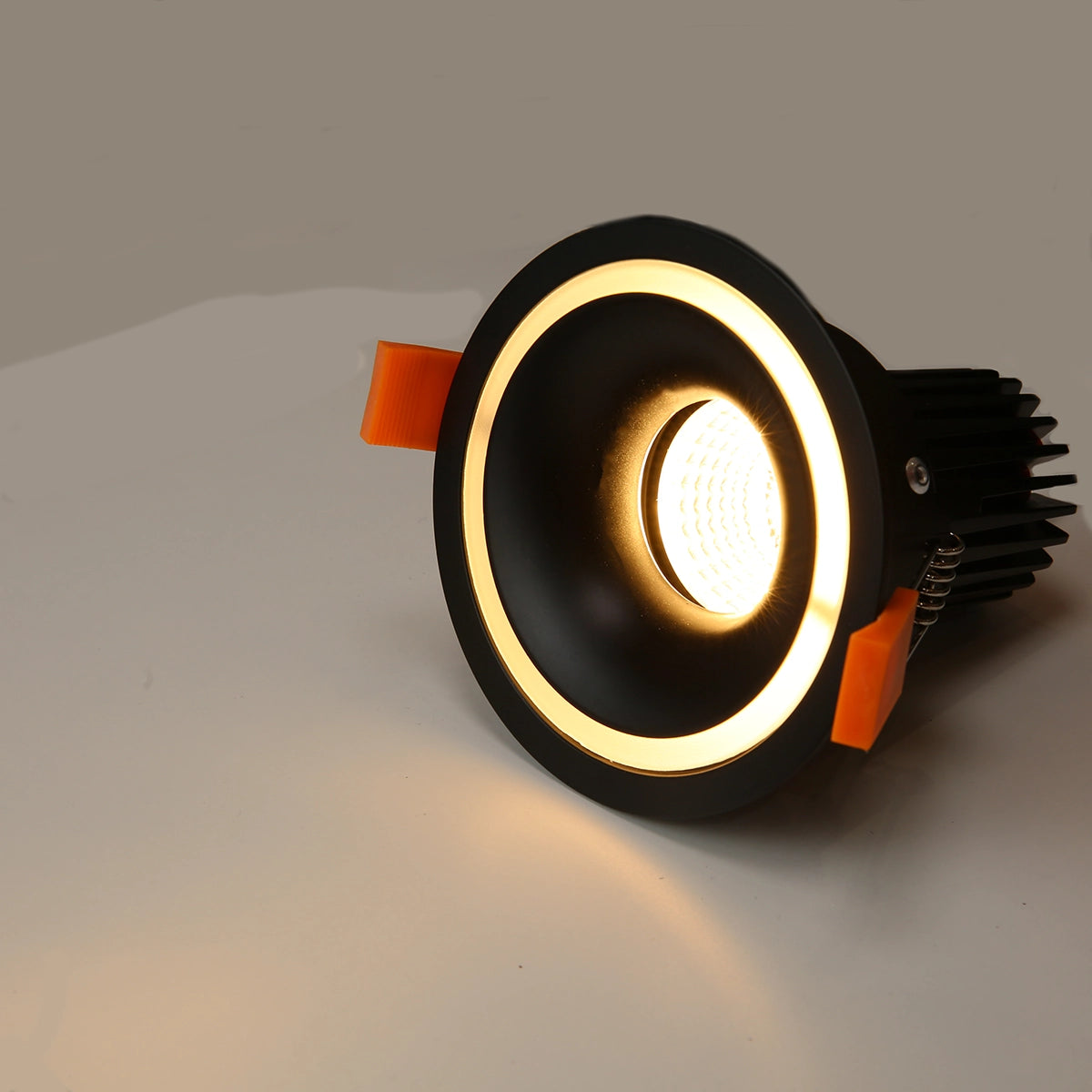

a. very unique and rare finish on your down lights. This ring forms a round halo on your down light trim. You are not going to walk into many places with this kind of light fitting.
b. Low glare as the light module sits a fair distance in the ceiling.
c. for black painted ceilings, example home cinema evnironment.
Do not choose this trim if
a. You are replacing existing lights and the cut out size is large than 90 mm
b. you are using this fitting in high moisture areas i.e. external eves or shower rooms. This fitting does not have glass to increase the moisture protection of the light module from IP20 to IP44. Using this fitting in high moisture areas will expose the light module to moisture which will result in light failure.
c. This fitting is one of our favourite. Most of our customers get wowed by it. Having said that, there are people who have made comments like " not my cup of tea" . There are quite a few pictures to help you choose.

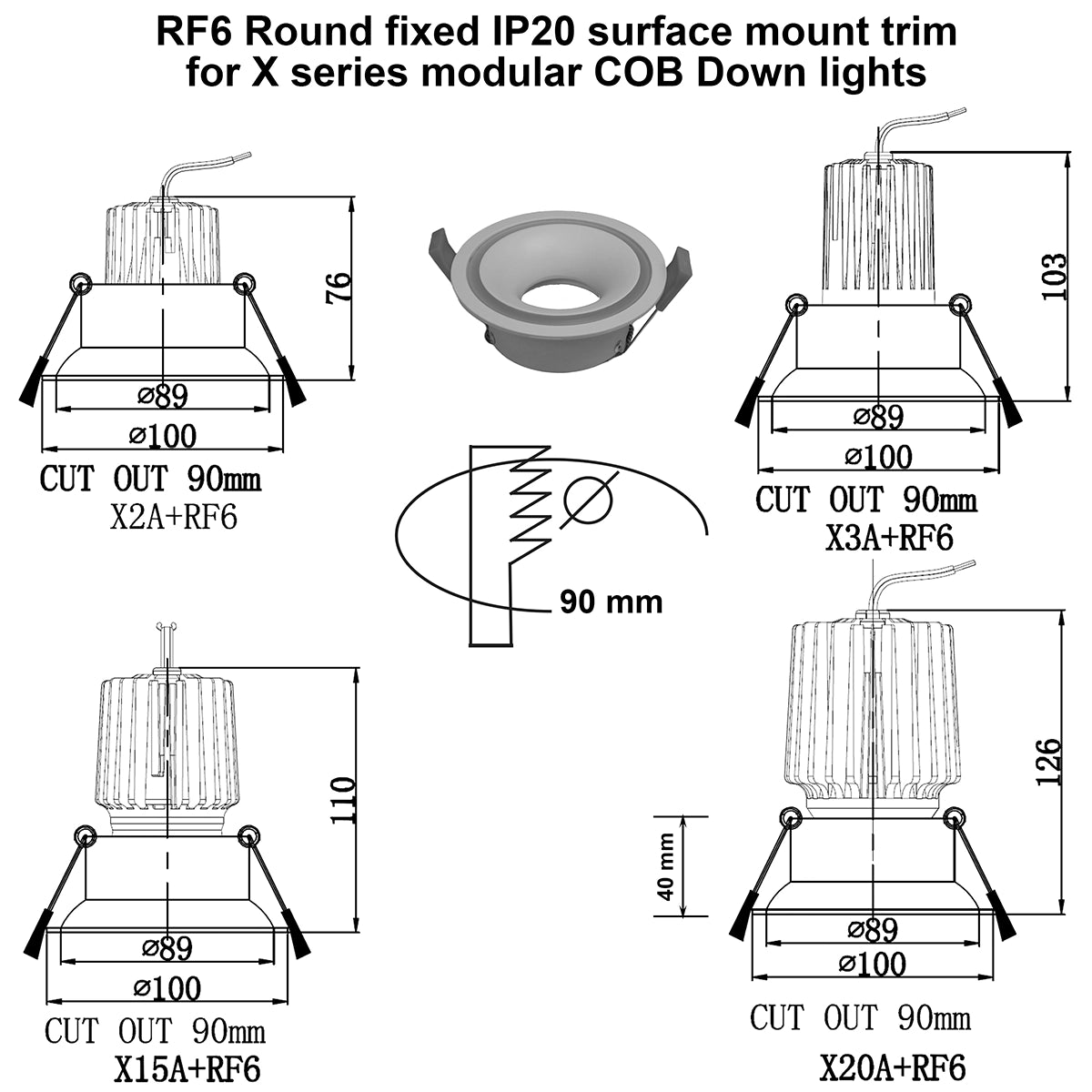

Cut out |
89-90 mm |
Diameter of face |
100 mm |
Total height of fitting |
42 mm |
Mounting depth with X3A |
103 mm |
Mounting depth with X15A |
110 mm |
Mounting depth with X20A |
126 mm |
Mounting depth with XRGBW |
103 mm |
Mounting depth with XCCT |
88 mm |
Click here to download a pdf spec sheet for RF6 round fixed IP20 trim.

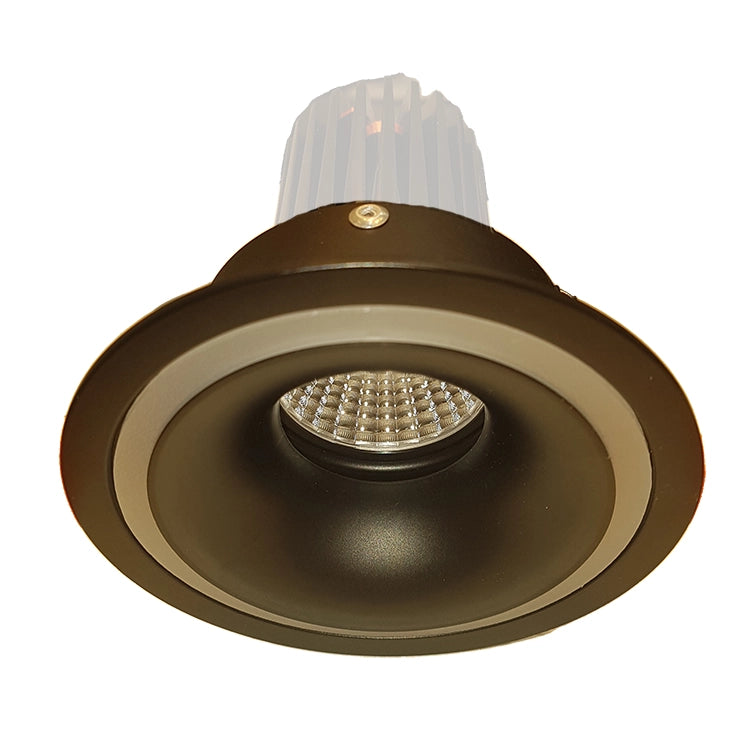

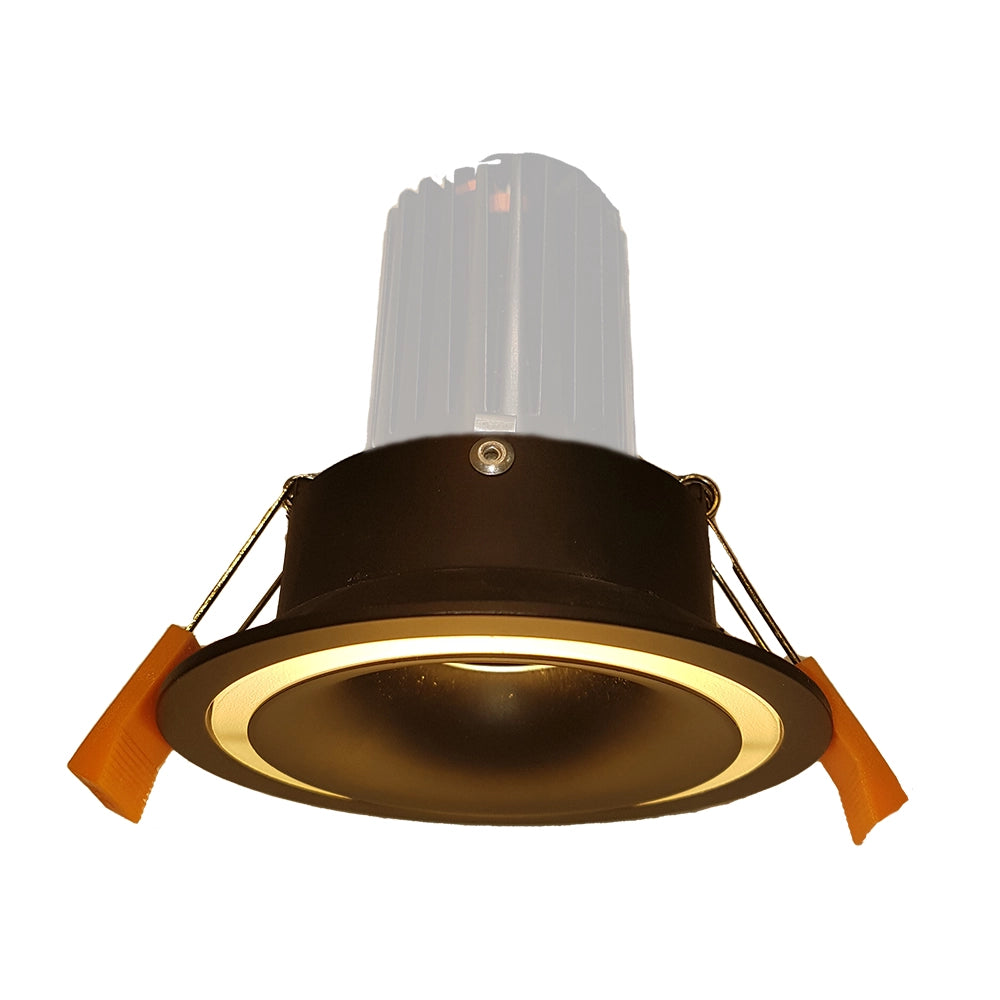

The price is for the surface mount trim only. The light is shown for illustration purposes only.
