RF36 Black and White- Round fixed IP20 surface mount trim with white halo ring for X Series COB Modules
RF36 Black and White- Round fixed IP20 surface mount trim with white halo ring for X Series COB Modules
20 in stock
SKU:RF36 Black and White
IP20, Surface mount ring for X3A, X15A, X20A, XRGBW and XCCT COB down light modules.
Choose this trim if
a. very unique and rare finish on your down lights. This ring forms a round halo on your down light trim. You are not going to walk into many places with this kind of light fitting.
b. Low glare as the light module sits a fair distance in the ceiling.
c. works equally well with black or white ceiling.
Do not choose this trim if
a. You are replacing existing lights and the cut out size is large than 90 mm
b. you are using this fitting in high moisture areas i.e. external eves or shower rooms. This fitting does not have glass to increase the moisture protection of the light module from IP20 to IP44. Using this fitting in high moisture areas will expose the light module to moisture which will result in light failure.
c. Most of our customers get wowed by it. Having said that, there are people who have made comments like " not my cup of tea" . There are quite a few pictures to help you choose.

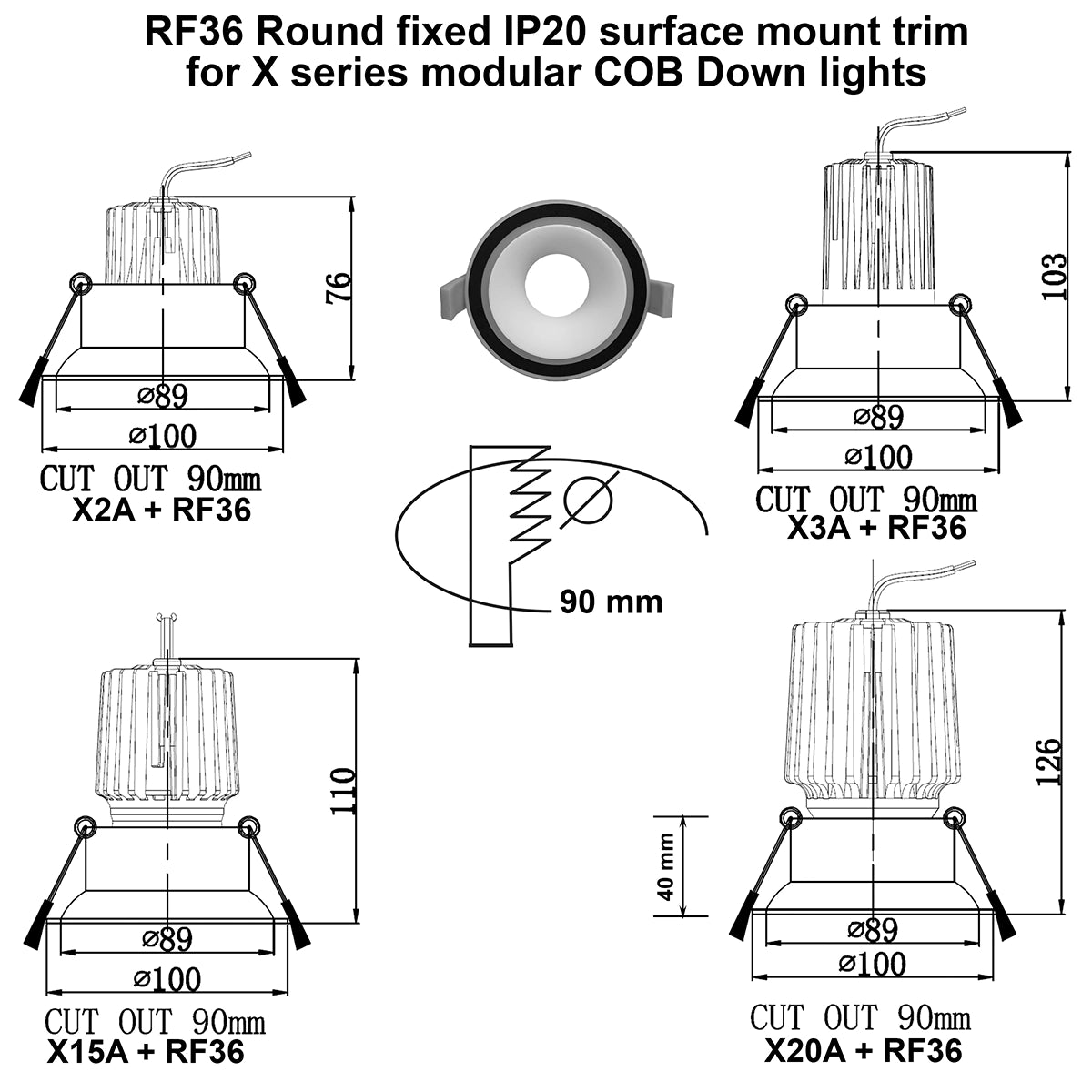

Cut out |
89-90 mm |
Diameter of face |
100 mm |
Total height of fitting |
42 mm |
Mounting depth with X3A |
103 mm |
Mounting depth with X15A |
110 mm |
Mounting depth with X20A |
126 mm |
Mounting depth with XRGBW |
103 mm |
Mounting depth with XCCT |
88 mm |
Click here to download a pdf spec sheet for RF36 round fix IP20 trim.
The price is for the surface mount trim only. The light is shown for illustration purposes only.
