RF2 Black-Round fixed IP20 surface mount trim for X Series COB Light modules

RF2 Black-Round fixed IP20 surface mount trim for X Series COB Light modules

210 in stock

SKU:RF2 Black

Regular price $13.00 AUD
Regular price $13.00 AUD Sale price $13.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

IP44, Surface mount ring for X3A, X15A,X20A, XRGBW and XCCT COB downlight module

Choose this trim if

a. the desired outcome is an architecturally attractive low profile 5 mm bezel.

b. Low glare as the light module sits a fair distance in the ceiling.

c. Very neutral look that everyone will like.

d. if you require your light to be IP44. The glass cover in this trim will block moisture getting into the light module.

e. When you have a black ceiling.

Do not choose this trim if

a. You are replacing existing lights and the cut out size is larger than 90 mm. Yes, it will not work very well with 92 mm cut out.

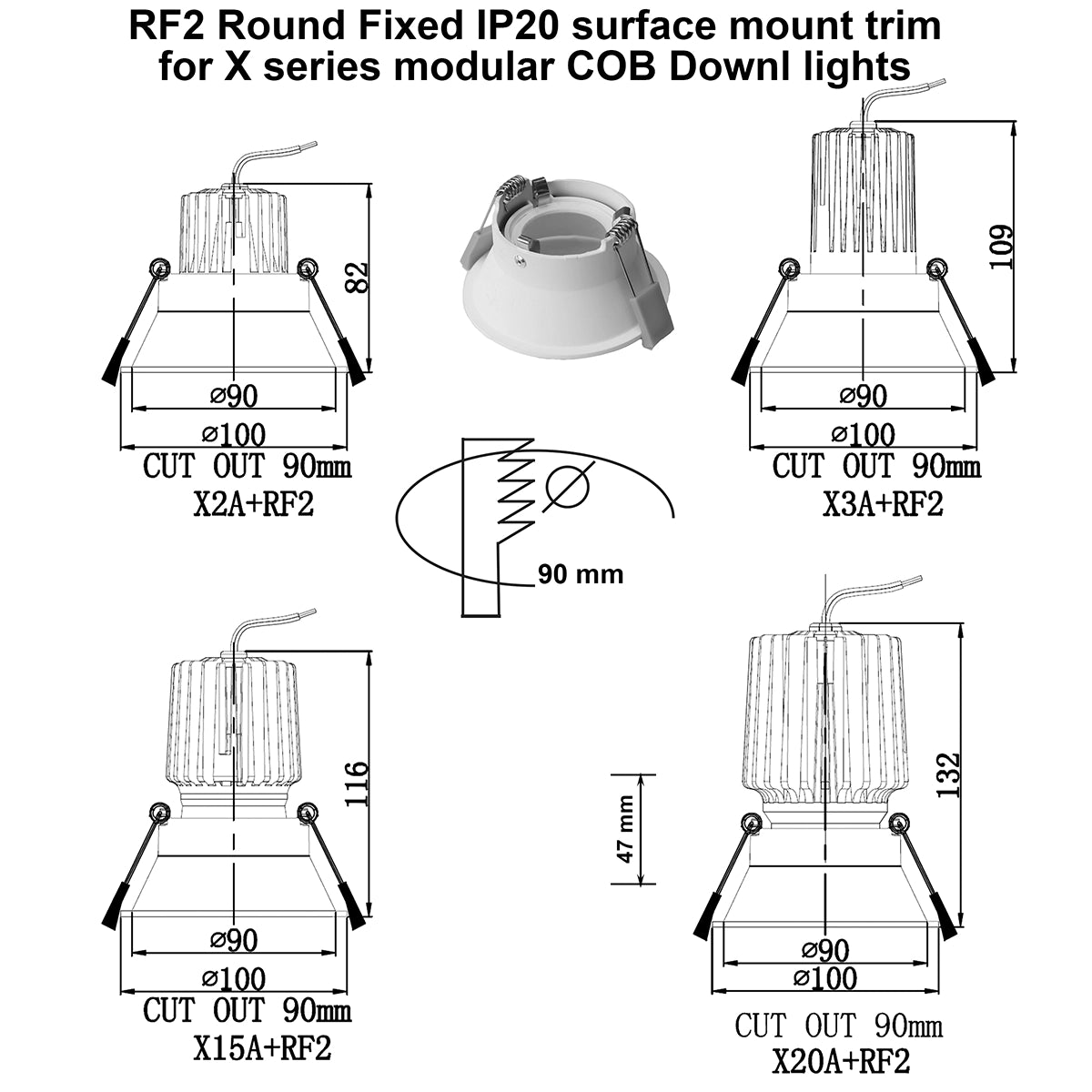

Cut out

89-90 mm

Diameter of face

100 mm

Total height of fitting

47 mm

Mounting depth with X3A

103 mm

Mounting depth with X15A

111 mm

Mounting depth with X20A

129 mm

Mounting depth with XRGBW

103 mm

Mounting depth with XCCT

88 mm





Click here to download a pdf spec sheet for RF2 round fixed IP20 trim.

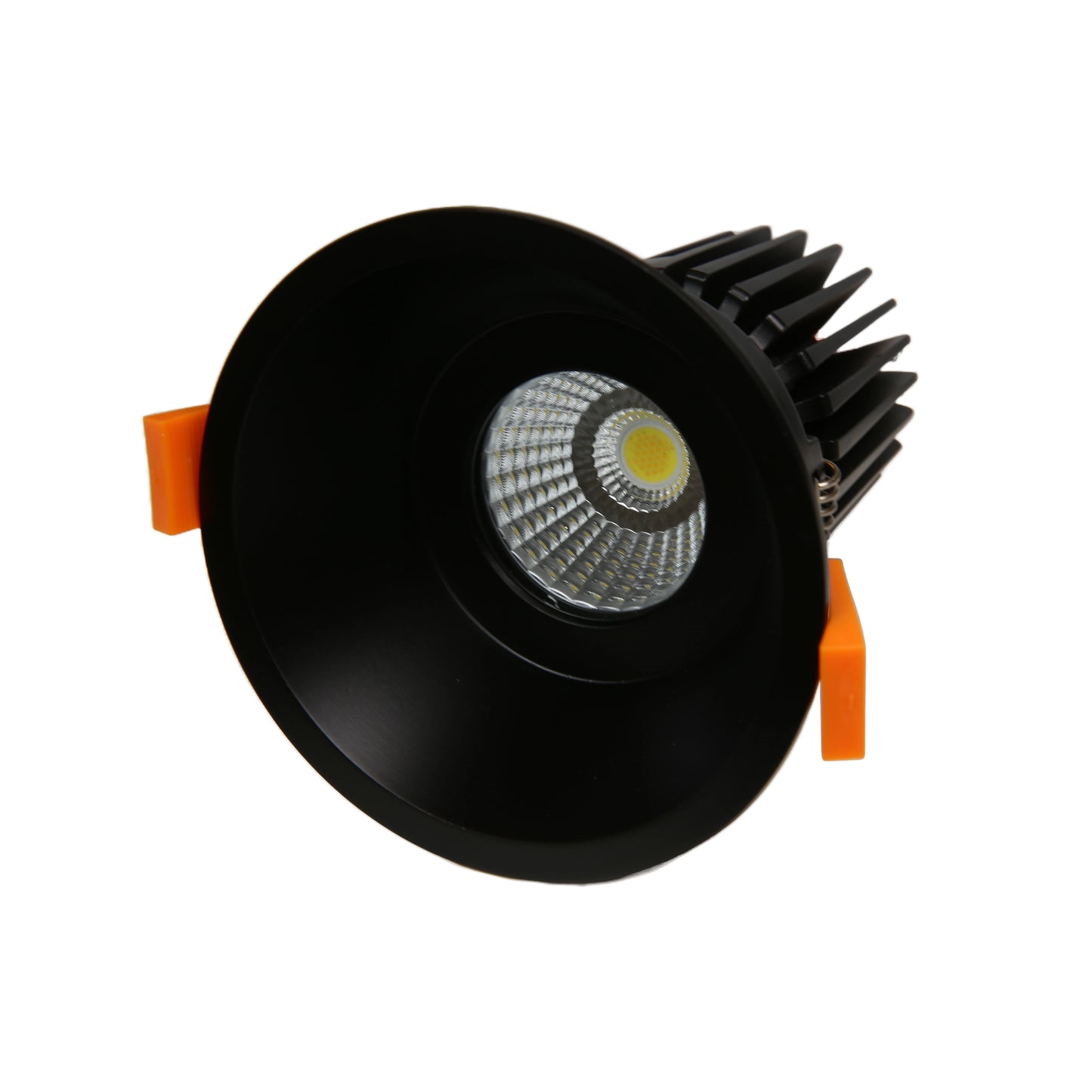

The price is for the surface mount trim only. The light is shown for illustration purposes only.
